Ultrex

$4,999.00$5,939.00
Reset Selection

DESCRIPTION

  • Power Steering: The most comfortable, responsive steering available. Ultrex’s foot pedal is built for all-day ease, with precision control and instant responsiveness.
  • Steering Lock: When you take your foot off Ultrex’s foot pedal, the motor head remains pointed in the direction you left it. No recoil or readjustment, just easier steering every day.
  • i-Pilot® Link™ Integrated GPS Trolling System: i-Pilot® Link™ gives you unprecedented control over your boat by linking your trolling motor to your Humminbird® fish finder. Control your trolling motor from Link’s color touch-screen remote or the Humminbird. You can set Spot-Locks, record paths, follow depth contours, automatically navigate to your favorite spots, control speed and steering, and more.
  • Spot-Lock with Jog: Spot-Lock will hold you in place with unparalleled GPS accuracy. Available on i-Pilot GPS system that is pre-installed, Spot-Lock gives you the power to stay right on top of any productive fishing spot, without touching your trolling motor. With the included heading sensor, you can use Jog to move your Spot-Lock location five feet in any direction. Activate Spot-Lock from the i-Pilot remote or Humminbird fish finder.

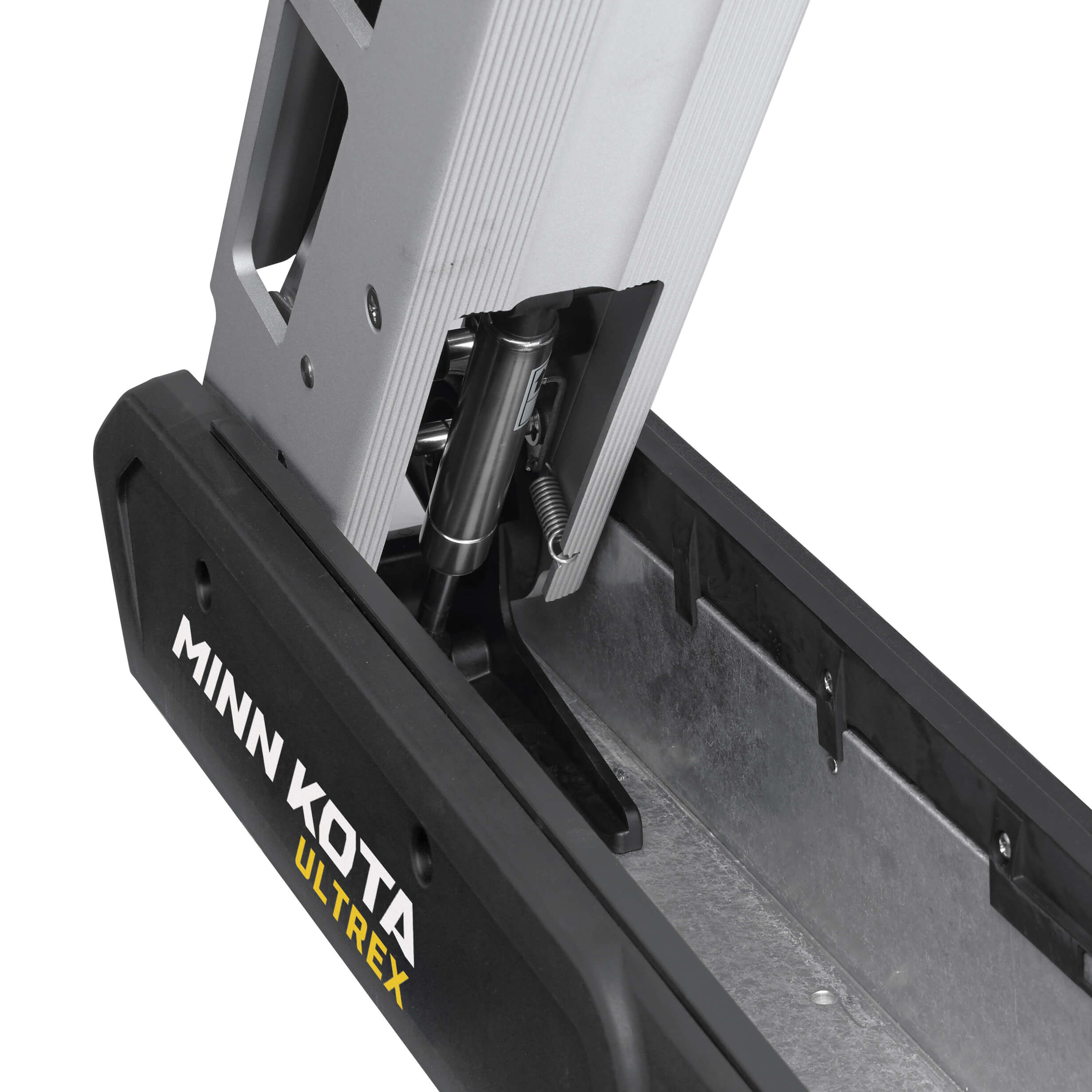

  • Lift-Assist: Ultrex’s patented Lift-Assist Design cuts the weight of stow and deploy in half. Features a stainless steel, nitrogen gas-charged spring.
  • AutoPilot™: Automatically navigate your boat in any direction you choose. Just point the head of your trolling motor in the direction you want to travel, activate AutoPilot™, and your trolling motor will keep you on that heading automatically, even correcting for wind, waves and current.
  • Built-In MEGA Down Imaging™: With a transducer built right into the motor, you get crystal clear Humminbird® MEGA Down Imaging and a clean protected look.

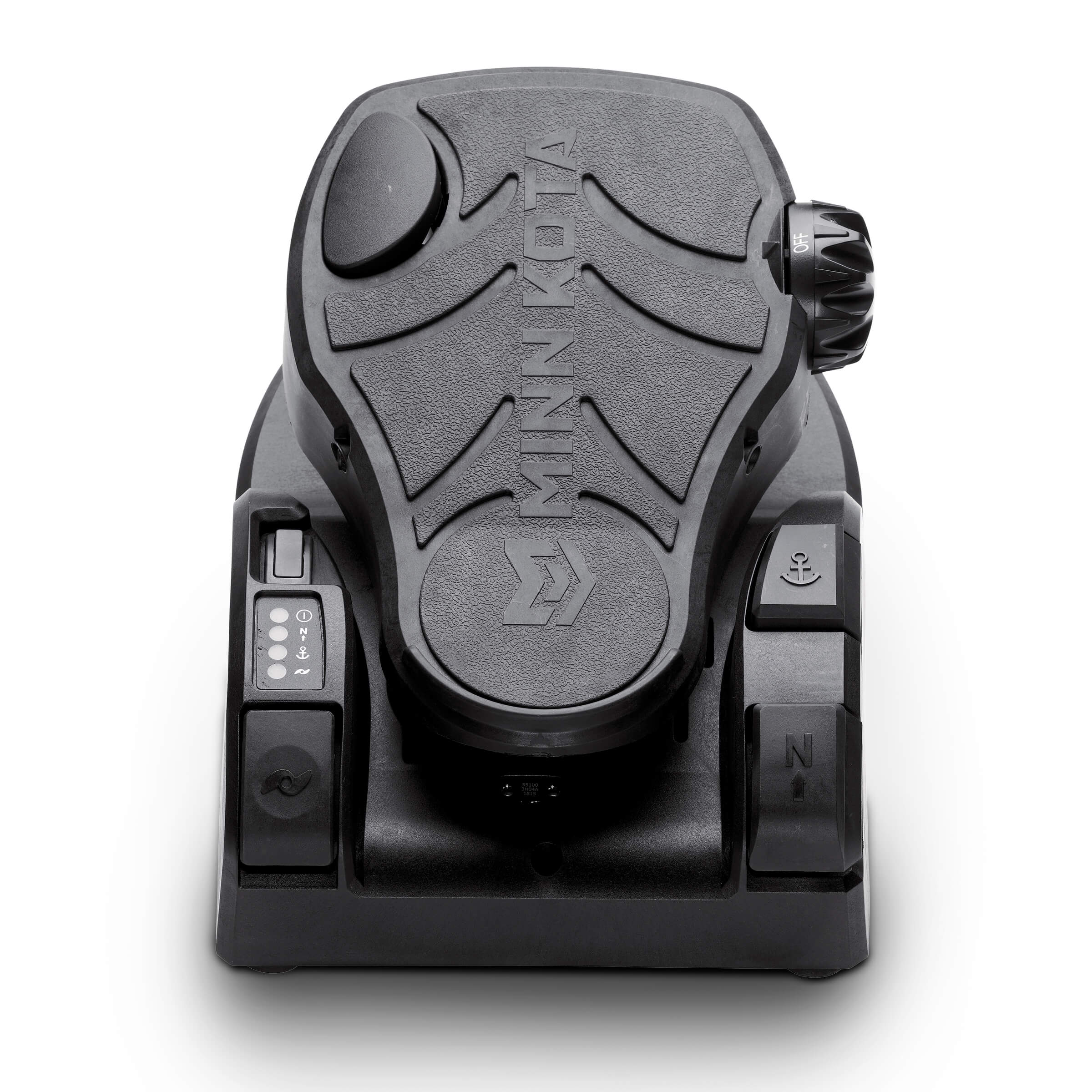

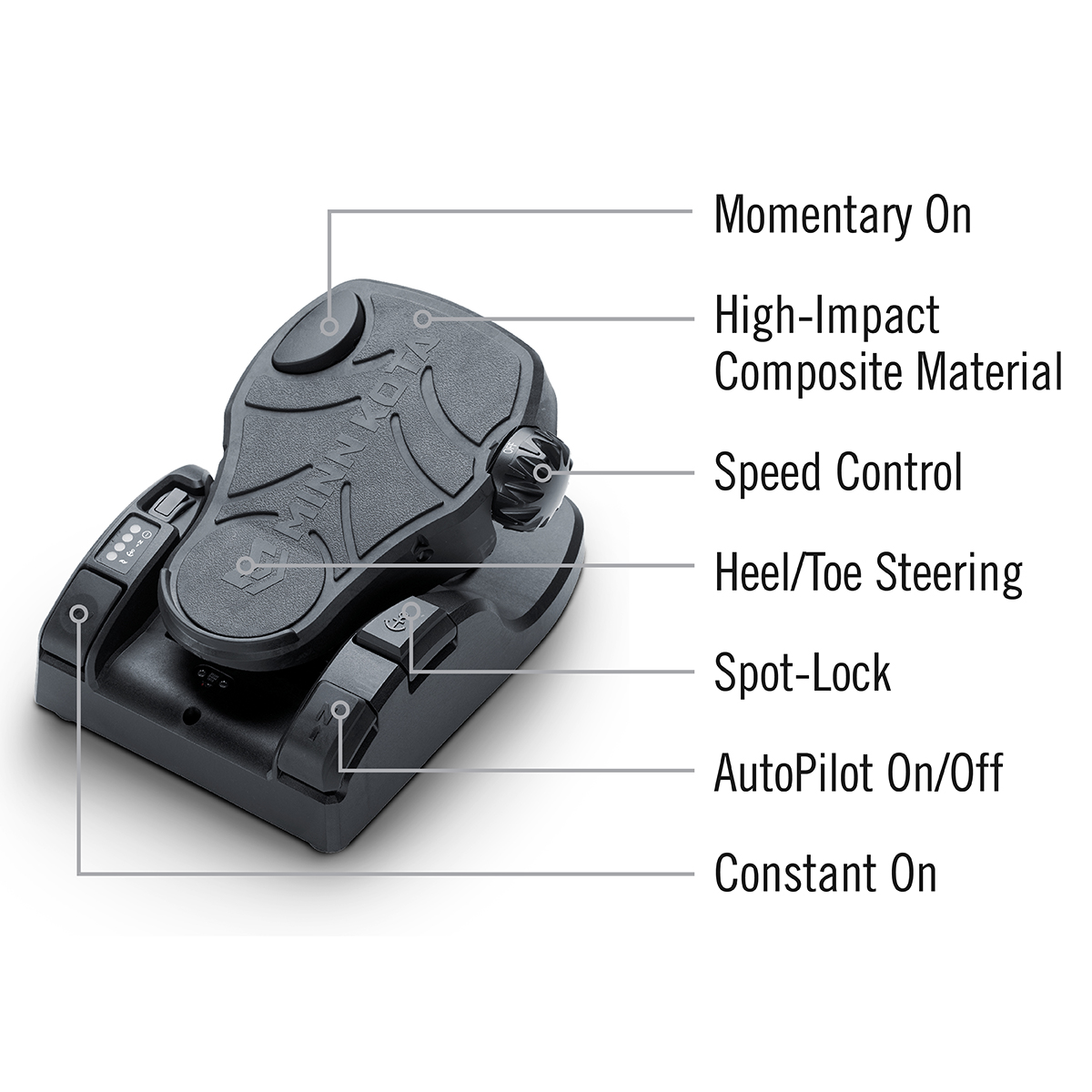

  • Heel-Toe/CableFoot Pedal: It’s the only foot pedal with Power Steering for all-day comfort and instant responsiveness — plus a button to activate Spot-Lock electronic anchor.
  • Integrated Battery Meter: The i-Pilot remote can tell you the exact charge left in your trolling batteries, so you know how much time you have left on the water.
  • Digital Maximizer™: Provides up to 5 times longer run time on a single battery charge. These variable speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.
  • Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructible composite shaft. It’s a Minn Kota exclusive, and we guarantee it for life.
    Mobile App Compatibility: Control i-Pilot directly from your Apple® or Android™ device with our mobile app. You get quick command of speed, steering, Spot-Lock and Advanced AutoPilot — plus the ability to update i-Pilot software.

SPECS

Model Ultrex 80 lb. / FP / US2 / i-Pilot – 52″
Product Code 601644
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 80 lbs.
Voltage 24
Shaft Length 52″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar Universal Sonar 2
i-Pilot Link GPS No
i-Pilot GPS Yes
AutoPilot Yes
CoPilot No
Universal Sonar 2 Yes
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

Model Ultrex 112 lb. / FP / US2 / i-Pilot – 52″
Product Code 601650
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 112 lbs.
Voltage 36
Shaft Length 52″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar Universal Sonar 2
i-Pilot Link GPS No
i-Pilot GPS Yes
AutoPilot Yes
CoPilot No
Universal Sonar 2 Yes
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

Model Ultrex 112 lb. / FP / MDI / i-Pilot – 52″
Product Code 601651
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 112 lbs.
Voltage 36
Shaft Length 52″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar MEGA Down Imaging
i-Pilot Link GPS No
i-Pilot GPS Yes
AutoPilot Yes
CoPilot No
Universal Sonar 2 No
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

Model Ultrex 112 lb. / FP / US2 / i-Pilot – 60″
Product Code 601652
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 112 lbs.
Voltage 36
Shaft Length 60″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar Universal Sonar 2
i-Pilot Link GPS No
i-Pilot GPS Yes
AutoPilot Yes
CoPilot No
Universal Sonar 2 Yes
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

Model Ultrex 80 lb. / FP / US2 / i-Pilot Link – 45″
Product Code 601654
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 80 lbs.
Voltage 24
Shaft Length 45″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar Universal Sonar 2
i-Pilot Link GPS Yes
i-Pilot GPS No
AutoPilot Yes
CoPilot No
Universal Sonar 2 Yes
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

Model Ultrex 80 lb. / FP / US2 / i-Pilot Link – 52″
Product Code 601656
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 80 lbs.
Voltage 24
Shaft Length 52″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar Universal Sonar 2
i-Pilot Link GPS Yes
i-Pilot GPS No
AutoPilot Yes
CoPilot No
Universal Sonar 2 Yes
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

Model Ultrex 80 lb. / FP / MDI / i-Pilot Link – 60″
Product Code 601658
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 80 lbs.
Voltage 24
Shaft Length 60″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar MEGA Down Imaging
i-Pilot Link GPS Yes
i-Pilot GPS No
AutoPilot Yes
CoPilot No
Universal Sonar 2 No
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

Model Ultrex 112 lb. / FP / US2 / i-Pilot Link – 45″
Product Code 601660
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 112 lbs.
Voltage 36
Shaft Length 45″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar Universal Sonar 2
i-Pilot Link GPS Yes
i-Pilot GPS No
AutoPilot Yes
CoPilot No
Universal Sonar 2 Yes
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

Model Ultrex 112 lb. / FP / US2 / i-Pilot Link – 52″
Product Code 601662
For Use In Freshwater
Mounting Location Bow-Mount
Motor Style Cable-steer, Electric-steer
Max Thrust 112 lbs.
Voltage 36
Shaft Length 52″
Foot Pedal Style Heel-Toe / Cable
Auto/Stow Deploy No
Power Trim No
Power Steering Yes
Lift-Assist Yes
Bowguard No
Wireless Remote Yes
Built-In Sonar Universal Sonar 2
i-Pilot Link GPS Yes
i-Pilot GPS No
AutoPilot Yes
CoPilot No
Universal Sonar 2 Yes
Speeds Variable
Digital Maximizer Yes
Battery Meter Yes
Warranty Three-Year Warranty

BUYING GUIDE

TROLLING MOTORS

Everything you need to know to find the Minn Kota that’s right for you

Explore Now
Additional information
Shaft Length

45", 52", 54", 60"

Voltage

24v (80 lbs.), 36v (112 lbs.)

Built-In Sonar

MEGA Down Imaging, Mega Down/Side Imaging, Universal Sonar 2

Technology

i-Pilot GPS (includes AutoPilot), i-Pilot Link GPS (includes AutoPilot)
