Ulterra
$6,199.00 – $7,419.00
DESCRIPTION
- Auto Stow & Deploy: Stow or deploy Ulterra just by pushing a button on your i-Pilot or i-Pilot Link remote, foot pedal or Humminbird fish finder.
- Power Trim: Trim Ulterra up or down at the push of a button — on either the foot pedal, the i-Pilot or i-Pilot Link remote or a Humminbird fish finder. Adjust to changing fishing conditions without reaching down to your trolling motor.
- i-Pilot® Link™ Integrated GPS Trolling System: i-Pilot® Link™ gives you unprecedented control over your boat by linking your trolling motor to your Humminbird® fish finder. Control your trolling motor from Link’s color touch-screen remote or the Humminbird. You can set Spot-Locks, record paths, follow depth contours, automatically navigate to your favorite spots, control speed and steering, and more.
- Spot-Lock with Jog: Spot-Lock will hold you in place with unparalleled GPS accuracy. Available on i-Pilot GPS system that is pre-installed, Spot-Lock gives you the power to stay right on top of any productive fishing spot, without touching your trolling motor. With the included heading sensor, you can use Jog to move your Spot-Lock location five feet in any direction. Activate Spot-Lock from the i-Pilot remote or Humminbird fish finder.
- AutoPilot™: Automatically navigate your boat in any direction you choose. Just point the head of your trolling motor in the direction you want to travel, activate AutoPilot™, and your trolling motor will keep you on that heading automatically, even correcting for wind, waves and current.
- Built-In MEGA Down Imaging®: With a transducer built right into the motor, you get crystal clear Humminbird® MEGA Down Imaging and a clean look and protected housing.

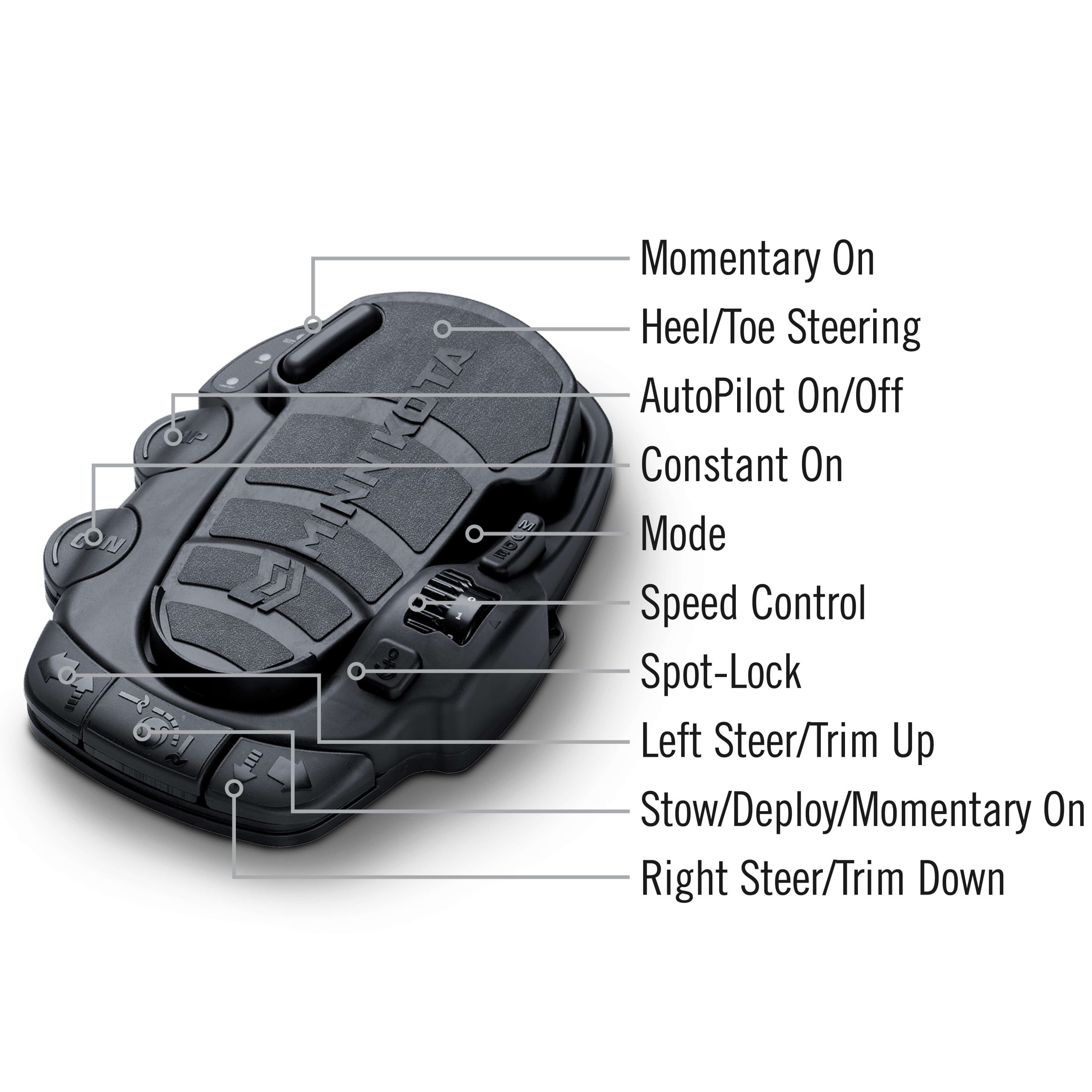

- Heel-Toe Electric Foot Pedal: Stow, deploy and adjust the trim on Ulterra — all from the foot pedal. You can even activate Spot-Lock with one tap. Includes 18′ cord.
- Integrated Battery Meter: The i-Pilot remote can tell you the exact charge left in your trolling batteries, so you know how much time you have left on the water.
- Digital Maximizer™: Provides up to 5 times longer run time on a single battery charge. These variable speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.
- Weedless Wedge™ 2 Prop: With swept-back flared blades to power through anything without battery-draining chopping and hacking, the Weedless Wedge™ 2 is one of the most trusted props in fishing.
- Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructible composite shaft. It’s a Minn Kota exclusive, and we guarantee it for life.
- Mobile App Compatibility: Control i-Pilot directly from your Apple® or Android™ device with our mobile app. You get quick command of speed, steering, Spot-Lock and Advanced AutoPilot — plus the ability to update i-Pilot software.
SPECS
| Model | Ulterra 80 lb. / FP / US2 / i-Pilot – 60″ |
| Product Code | 601638 |
| For Use In | Freshwater |
| Mounting Location | Bow-Mount |
| Motor Style | Electric-steer |
| Max Thrust | 80 lbs. |
| Voltage | 24 |
| Shaft Length | 60″ |
| Foot Pedal Style | Heel-Toe / Electric |
| Auto/Stow Deploy | Yes |
| Power Trim | Yes |
| Power Steering | Yes |
| Lift-Assist | No |
| Bowguard | No |
| Wireless Remote | Yes |
| Built-In Sonar | Universal Sonar 2 |
| i-Pilot Link GPS | No |
| i-Pilot GPS | Yes |
| AutoPilot | Yes |
| CoPilot | No |
| Universal Sonar 2 | Yes |
| Speeds | Variable |
| Digital Maximizer | Yes |
| Battery Meter | Yes |
| Warranty | Two-Year Warranty |
| Model | Ulterra 80 lb. / FP / MDI / i-Pilot – 60″ |
| Product Code | 601639 |
| For Use In | Freshwater |
| Mounting Location | Bow-Mount |
| Motor Style | Electric-steer |
| Max Thrust | 80 lbs. |
| Voltage | 24 |
| Shaft Length | 60″ |
| Foot Pedal Style | Heel-Toe / Electric |
| Auto/Stow Deploy | Yes |
| Power Trim | Yes |
| Power Steering | Yes |
| Lift-Assist | No |
| Bowguard | No |
| Wireless Remote | Yes |
| Built-In Sonar | MEGA Down Imaging |
| i-Pilot Link GPS | No |
| i-Pilot GPS | Yes |
| AutoPilot | Yes |
| CoPilot | No |
| Universal Sonar 2 | No |
| Speeds | Variable |
| Digital Maximizer | Yes |
| Battery Meter | Yes |
| Warranty | Two-Year Warranty |
| Model | Ulterra 112 lb. / FP / MDI / i-Pilot – 60″ |
| Product Code | 601641 |
| For Use In | Freshwater |
| Mounting Location | Bow-Mount |
| Motor Style | Electric-steer |
| Max Thrust | 112 lbs. |
| Voltage | 36 |
| Shaft Length | 60″ |
| Foot Pedal Style | Heel-Toe / Electric |
| Auto/Stow Deploy | Yes |
| Power Trim | Yes |
| Power Steering | Yes |
| Lift-Assist | No |
| Bowguard | No |
| Wireless Remote | Yes |
| Built-In Sonar | MEGA Down Imaging |
| i-Pilot Link GPS | No |
| i-Pilot GPS | Yes |
| AutoPilot | Yes |
| CoPilot | No |
| Universal Sonar 2 | No |
| Speeds | Variable |
| Digital Maximizer | Yes |
| Battery Meter | Yes |
| Warranty | Two-Year Warranty |
MANUALS
DIRECT DOWNLOAD
Ulterra QUEST – English Product Manual
Ulterra QUEST – English Installation Instructions
Instinct & Ulterra QUEST Dimensions
Ulterra and Riptide Instinct QUEST Quick Reference Guide
One-Boat Network App – English Product Manual
Wireless Remote – English Product Manual
QUEST Series Quick Reference Guide
OBN App & Wireless Remote Pairing Quick Reference Guide
BUYING GUIDE
TROLLING MOTORS
Everything you need to know to find the Minn Kota that’s right for you
ACCESSORIES
Additional information
| Shaft Length | 60" |
|---|---|
| Voltage | 24v (80 lbs.), 36v (112 lbs.) |
| Built-In Sonar | MEGA Down Imaging, Universal Sonar 2 |
| Technology | i-Pilot GPS (includes AutoPilot) |
